UPI48-M

Modular inverter for multi-phase 48 V-system

Main features:

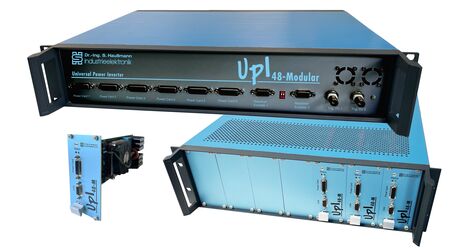

• Modular system, consisting of 19“-3U-rack-mount chassis unit, 19“-2U-control unit and configurable half-bridge plugin
  modules
• Up to 6 slots for half-bridge plug-in modules available in the power unit
• Half-bridge modules configurable as step-up/step-down converters, interleaved DC-DC converters, full-bridge DC/DC
  or DC/AC converters, 3-/6-phase DC/AC converters, multilevel converters
• Each half-bridge module contains its own current, voltage and temperature measurement circuitry
